Main Features：
1.Compact and simply design, light in weight,ISO5211 direct mount patterns.
2.Easy to realize the manual drive or the pneumatic drive with the place-pin.
Filled with special lubricant before leaving the factory.
3. Lubricating oil used at every parts when assemly.
4.Output torque ranges of GD series from 180 to 5500Nm.
5.Fine adjustment of ±5°.Weatherproof is IP65.

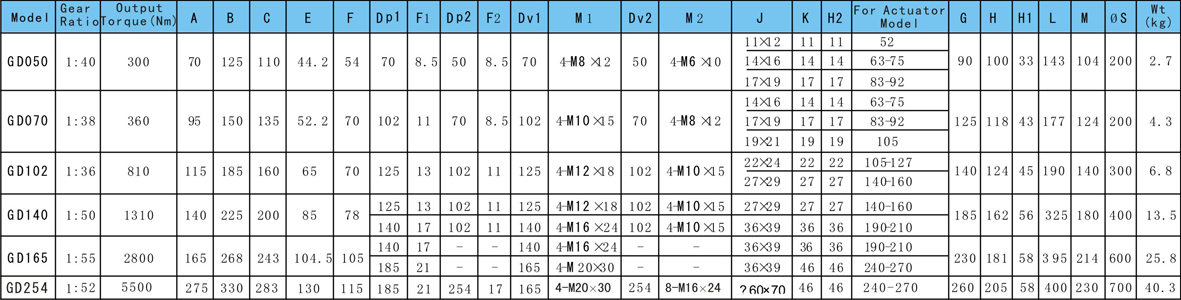

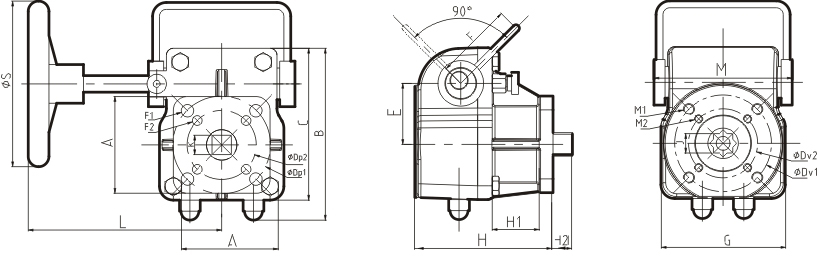

Specification：
|
Mode |
Actuator
square |
Valve
square |
ISO 5211
Flange
Type |
ΦISO
Holes |
Ø |
Outptut/
Input
Torque
Ratio |
Reference
Output
Torque(Nm) |
Actuator
Mode |
Butterfly
valve |
Ball valve
Model |
WT(KG) |
|
GD050 |
11/14/17 |
11/14/17 |
F05,F07 |
50,70 |
200 |
1:9.6 |
300 |
52-105 |
32-150 |
50 |
2.7 |
|
GD070 |
14/17/19 |
14/17/19 |
F07,F10 |
70,102 |
200 |
1:12.5 |
360 |
63-127 |
32-200 |
63 |
4.3 |
|
GD102 |
22/27 |
22/27 |
F10,F12 |
102,125 |
300 |
1:12.5 |
810 |
105-160 |
200-300 |
80 |
6.8 |
|
GD140 |
27/36 |
27/36 |
F10,F12
F14 |
102,125,
140 |
400 |
1:10 |
1310 |
140-210 |
250-350 |
100 |
13.5 |
|
GD165 |
36/46 |
36 |
F14,F16 |
140,165 |
600 |
1:19 |
2800 |
240-270 |
350-400 |
150 |
25.8 |
|
GD254 |
46 |
Ø60 |
F25,F16 |
165,254 |
700 |
1:19 |
5500 |
270-300 |
450-500 |
250 |
40.3 | |
